fixedWall Class Reference

Fixed wall motion model for walls. More...

Classes

class  Model
 Motion model class to be passed to computational units/kernels for transfing points and returning velocities at various positions. More...


Public Member Functions

 TypeInfoNV ("fixedWall")
 Type info. More...

 fixedWall ()
 Empty. More...

 fixedWall (const dictionary &dict)
 Constructor with dictionary. More...

 fixedWall (const fixedWall &)=default
 Copy constructor. More...

 fixedWall (fixedWall &&)=default
 Move constructor. More...

fixedWall & operator= (const fixedWall &)=default
 Copy assignment. More...

fixedWall & operator= (fixedWall &&)=default
 Move assignment. More...

 ~fixedWall ()=default
 Destructor. More...

Model getModel (real t) const
 Return motion model t is the current simulation time
More...

int32 nameToIndex (const word &name) const
 Name of the motion component to index. More...

word indexToName (label i) const
 Index of motion component to name. More...

INLINE_FUNCTION_HD realx3 pointVelocity (label n, const realx3 &p) const
 Velocity at point p. More...

INLINE_FUNCTION_HD realx3 transferPoint (label n, const realx3 p, real dt) const
 Transfer point p for dt seconds according to motion component n. More...

INLINE_FUNCTION_HD bool transferPoint (label n, realx3 *pVec, size_t numP, real dt)
 Transfer a vector of point pVec for dt seconds according to motion component n. More...

INLINE_FUNCTION_HD bool isMoving () const
 Are walls moving. More...

bool move (real t, real dt)
 Move points. More...

FUNCTION_H bool read (iIstream &is)
 Read from input stream is. More...

FUNCTION_H bool write (iOstream &os) const
 Write to output stream os. More...


Protected Member Functions

bool readDictionary (const dictionary &dict)
 Read from a dictionary. More...

bool writeDictionary (dictionary &dict) const
 write to a dictionary More...


Protected Attributes

const word name_ = "none"
 Name. More...


Detailed Description

Fixed wall motion model for walls.

This class is used for geometries that are fixed during simulation.

// In geometryDict file, this will defines fixed walls during simulation
...
motionModel fixedWall;
...

Definition at line 50 of file fixedWall.hpp.

Constructor & Destructor Documentation

◆ fixedWall() [1/4]

fixedWall ( )

Empty.

Definition at line 55 of file fixedWall.cpp.

◆ fixedWall() [2/4]

fixedWall ( const dictionary &  dict)

Constructor with dictionary.

Definition at line 59 of file fixedWall.cpp.

References fatalExit.

◆ fixedWall() [3/4]

fixedWall ( const fixedWall &  )
default

Copy constructor.

◆ fixedWall() [4/4]

fixedWall ( fixedWall &&  )
default

Move constructor.

◆ ~fixedWall()

~fixedWall ( )
default

Destructor.

Member Function Documentation

◆ readDictionary()

bool readDictionary ( const dictionary &  dict)
protected

Read from a dictionary.

Definition at line 26 of file fixedWall.cpp.

References pFlow::endl(), fatalErrorInFunction, and dictionary::getVal().

+ Here is the call graph for this function:

◆ writeDictionary()

bool writeDictionary ( dictionary &  dict) const
protected

write to a dictionary

Definition at line 44 of file fixedWall.cpp.

References dictionary::add(), and dictionary::subDictOrCreate().

+ Here is the call graph for this function:

◆ TypeInfoNV()

TypeInfoNV ( "fixedWall"  )

Type info.

◆ operator=() [1/2]

fixedWall& operator= ( const fixedWall &  )
default

Copy assignment.

◆ operator=() [2/2]

fixedWall& operator= ( fixedWall &&  )
default

Move assignment.

◆ getModel()

Model getModel ( real  t) const
inline

Return motion model t is the current simulation time

Definition at line 140 of file fixedWall.hpp.

◆ nameToIndex()

int32 nameToIndex ( const word &  name) const
inline

Name of the motion component to index.

Definition at line 146 of file fixedWall.hpp.

◆ indexToName()

word indexToName ( label  i) const
inline

Index of motion component to name.

Definition at line 152 of file fixedWall.hpp.

References fixedWall::name_.

◆ pointVelocity()

INLINE_FUNCTION_HD realx3 pointVelocity ( label  n,
const realx3 &  p
) const
inline

Velocity at point p.

Definition at line 159 of file fixedWall.hpp.

References pFlow::zero3.

◆ transferPoint() [1/2]

INLINE_FUNCTION_HD realx3 transferPoint ( label  n,
const realx3  p,
real  dt
) const
inline

Transfer point p for dt seconds according to motion component n.

Definition at line 167 of file fixedWall.hpp.

◆ transferPoint() [2/2]

INLINE_FUNCTION_HD bool transferPoint ( label  n,
realx3 *  pVec,
size_t  numP,
real  dt
)
inline

Transfer a vector of point pVec for dt seconds according to motion component n.

Definition at line 175 of file fixedWall.hpp.

◆ isMoving()

INLINE_FUNCTION_HD bool isMoving ( ) const
inline

Are walls moving.

Definition at line 182 of file fixedWall.hpp.

◆ move()

bool move ( real  t,
real  dt
)
inline

Move points.

Definition at line 188 of file fixedWall.hpp.

◆ read()

bool read ( iIstream &  is)

Read from input stream is.

Definition at line 70 of file fixedWall.cpp.

References ioErrorInFile, IOstream::lineNumber(), pFlow::motionModelFile__, IOstream::name(), and dictionary::read().

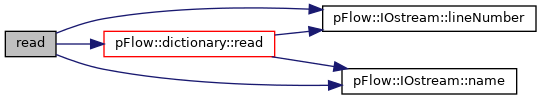

+ Here is the call graph for this function:

◆ write()

bool write ( iOstream &  os) const

Write to output stream os.

Definition at line 91 of file fixedWall.cpp.

References ioErrorInFile, IOstream::lineNumber(), pFlow::motionModelFile__, IOstream::name(), and dictionary::write().

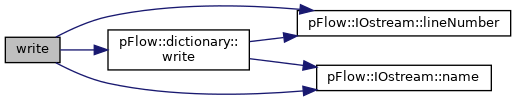

+ Here is the call graph for this function:

Member Data Documentation

◆ name_

const word name_ = "none"
protected

Name.

Definition at line 99 of file fixedWall.hpp.

Referenced by fixedWall::indexToName().

The documentation for this class was generated from the following files:
