fixedWall Class Reference

Fixed wall motion model for walls. More...

Classes
class	Model
	Motion model class to be passed to computational units/kernels for transfing points and returning velocities at various positions. More...

Public Member Functions
	TypeInfoNV ("fixedWall")
	Type info. More...
	fixedWall ()
	Empty. More...
	fixedWall (const dictionary &dict)
	Constructor with dictionary. More...
	fixedWall (const fixedWall &)=default
	Copy constructor. More...
	fixedWall (fixedWall &&)=default
	Move constructor. More...
fixedWall &	operator= (const fixedWall &)=default
	Copy assignment. More...
fixedWall &	operator= (fixedWall &&)=default
	Move assignment. More...
	~fixedWall ()=default
	Destructor. More...
Model	getModel (real t) const
	Return motion model t is the current simulation time More...
int32	nameToIndex (const word &name) const
	Name of the motion component to index. More...
word	indexToName (label i) const
	Index of motion component to name. More...
INLINE_FUNCTION_HD realx3	pointVelocity (label n, const realx3 &p) const
	Velocity at point p. More...
INLINE_FUNCTION_HD realx3	transferPoint (label n, const realx3 p, real dt) const
	Transfer point p for dt seconds according to motion component n. More...
INLINE_FUNCTION_HD bool	transferPoint (label n, realx3 *pVec, size_t numP, real dt)
	Transfer a vector of point pVec for dt seconds according to motion component n. More...
INLINE_FUNCTION_HD bool	isMoving () const
	Are walls moving. More...
bool	move (real t, real dt)
	Move points. More...
FUNCTION_H bool	read (iIstream &is)
	Read from input stream is. More...
FUNCTION_H bool	write (iOstream &os) const
	Write to output stream os. More...

Protected Member Functions
bool	readDictionary (const dictionary &dict)
	Read from a dictionary. More...
bool	writeDictionary (dictionary &dict) const
	write to a dictionary More...

Protected Attributes
const word	name_ = "none"
	Name. More...

Detailed Description

Fixed wall motion model for walls.

This class is used for geometries that are fixed during simulation.

// In geometryDict file, this will defines fixed walls during simulation
...
motionModel fixedWall;
...

Definition at line 50 of file fixedWall.hpp.

Constructor & Destructor Documentation

fixedWall() [1/4]

fixedWall

(

)

Empty.

Definition at line 55 of file fixedWall.cpp.

fixedWall() [2/4]

fixedWall

(

const dictionary &

dict

)

Constructor with dictionary.

Definition at line 59 of file fixedWall.cpp.

References fatalExit.

fixedWall() [3/4]

fixedWall ( const fixedWall &  )

default

Copy constructor.

fixedWall() [4/4]

fixedWall ( fixedWall &&  )

default

Move constructor.

~fixedWall()

~fixedWall ( )

default

Destructor.

Member Function Documentation

readDictionary()

bool readDictionary ( const dictionary &  dict )

protected

Read from a dictionary.

Definition at line 26 of file fixedWall.cpp.

References pFlow::endl(), fatalErrorInFunction, and dictionary::getVal().

Here is the call graph for this function:

writeDictionary()

bool writeDictionary ( dictionary &  dict ) const

protected

write to a dictionary

Definition at line 44 of file fixedWall.cpp.

References dictionary::add(), and dictionary::subDictOrCreate().

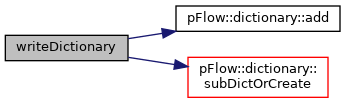

Here is the call graph for this function:

TypeInfoNV()

TypeInfoNV

(

"fixedWall"

)

Type info.

operator=() [1/2]

fixedWall& operator= ( const fixedWall &  )

default

Copy assignment.

operator=() [2/2]

fixedWall& operator= ( fixedWall &&  )

default

Move assignment.

getModel()

Model getModel ( real  t ) const

inline

Return motion model t is the current simulation time

Definition at line 140 of file fixedWall.hpp.

nameToIndex()

int32 nameToIndex ( const word &  name ) const

inline

Name of the motion component to index.

Definition at line 146 of file fixedWall.hpp.

indexToName()

word indexToName ( label  i ) const

inline

Index of motion component to name.

Definition at line 152 of file fixedWall.hpp.

References fixedWall::name_.

pointVelocity()

INLINE_FUNCTION_HD realx3 pointVelocity ( label  n, const realx3 &  p  ) const

inline

Velocity at point p.

Definition at line 159 of file fixedWall.hpp.

References pFlow::zero3.

transferPoint() [1/2]

INLINE_FUNCTION_HD realx3 transferPoint ( label  n, const realx3  p, real  dt  ) const

inline

Transfer point p for dt seconds according to motion component n.

Definition at line 167 of file fixedWall.hpp.

transferPoint() [2/2]

INLINE_FUNCTION_HD bool transferPoint ( label  n, realx3 *  pVec, size_t  numP, real  dt  )

inline

Transfer a vector of point pVec for dt seconds according to motion component n.

Definition at line 175 of file fixedWall.hpp.

isMoving()

INLINE_FUNCTION_HD bool isMoving ( ) const

inline

Are walls moving.

Definition at line 182 of file fixedWall.hpp.

move()

bool move ( real  t, real  dt  )

inline

Move points.

Definition at line 188 of file fixedWall.hpp.

read()

bool read

(

iIstream &

is

)

Read from input stream is.

Definition at line 70 of file fixedWall.cpp.

References ioErrorInFile, IOstream::lineNumber(), pFlow::motionModelFile__, IOstream::name(), and dictionary::read().

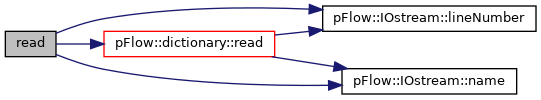

Here is the call graph for this function:

write()

bool write

(

iOstream &

os

)

const

Write to output stream os.

Definition at line 91 of file fixedWall.cpp.

References ioErrorInFile, IOstream::lineNumber(), pFlow::motionModelFile__, IOstream::name(), and dictionary::write().

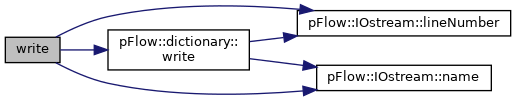

Here is the call graph for this function:

Member Data Documentation

name_

const word name_ = "none"

protected

Name.

Definition at line 99 of file fixedWall.hpp.

Referenced by fixedWall::indexToName().

---

The documentation for this class was generated from the following files:

• src/MotionModel/fixedWall/fixedWall.hpp
• src/MotionModel/fixedWall/fixedWall.cpp
