Vibrating motion model for walls. More...

Collaboration diagram for vibratingMotion:

Classes
class	Model
	Motion model class to be passed to computational units/kernels for transfing points and returning velocities at various positions. More...

Public Member Functions
	TypeInfoNV ("vibratingMotion")
	Type info. More...

FUNCTION_H	vibratingMotion ()
	Empty. More...

FUNCTION_H	vibratingMotion (const dictionary &dict)
	Construct with dictionary. More...

FUNCTION_H	vibratingMotion (const vibratingMotion &)=default
	Copy constructor. More...

	vibratingMotion (vibratingMotion &&)=delete
	No move. More...

FUNCTION_H vibratingMotion &	operator= (const vibratingMotion &)=default
	Copy assignment. More...

vibratingMotion &	operator= (vibratingMotion &&)=delete
	No Move assignment. More...

FUNCTION_H	~vibratingMotion ()=default
	Destructor. More...

Model	getModel (real t)
	Return motion model at time t. More...

INLINE_FUNCTION_H int32	nameToIndex (const word &name) const
	Name to component index. More...

INLINE_FUNCTION_H word	indexToName (label i) const
	Index to name. More...

INLINE_FUNCTION_H realx3	pointVelocity (label n, const realx3 &p) const
	velocity at point p according to motion component n More...

INLINE_FUNCTION_H realx3	transferPoint (label n, const realx3 p, real dt) const
	Transfer point p for dt seconds based on motion component n. More...

INLINE_FUNCTION_HD bool	isMoving () const
	Is moving. More...

INLINE_FUNCTION_H bool	move (real t, real dt)
	Move ponits at time t for dt seconds. More...

FUNCTION_H bool	read (iIstream &is)
	Read from input stream is. More...

FUNCTION_H bool	write (iOstream &os) const
	Write to output stream os. More...

Protected Types
using	axisVector_HD = VectorDual< vibrating >

Protected Member Functions
bool	readDictionary (const dictionary &dict)
	Read from a dictionary. More...

bool	writeDictionary (dictionary &dict) const
	Write to a dictionary. More...

Protected Attributes
axisVector_HD	components_
	Vibrating motion components. More...

wordList	componentName_
	Names of components. More...

label	numComponents_ = 0
	Number of components. More...

Detailed Description

Vibrating motion model for walls.

This class is used for simulaiton that at least one wall components are moving according to a sinoidal viration defined in class vibrating. One or more than one motion components can be defined in vibratingMotionInfo dictionary

// In geometryDict file, this will defines vibrating walls during simulation
...
motionModel vibratingMotion;

vibratingMotionInfo
{
    vibComponent1
    {
        // the definition based on class vibrating
    }
    vibComponent2
    {
        // the definition based on calss vibrating
    }
}
...

Definition at line 68 of file vibratingMotion.hpp.

Member Typedef Documentation

◆ axisVector_HD

using axisVector_HD = VectorDual<vibrating>

protected

Definition at line 124 of file vibratingMotion.hpp.

Constructor & Destructor Documentation

◆ vibratingMotion() [1/4]

vibratingMotion ( )

Empty.

Definition at line 112 of file vibratingMotion.cpp.

◆ vibratingMotion() [2/4]

vibratingMotion ( const dictionary & dict )

Construct with dictionary.

Definition at line 116 of file vibratingMotion.cpp.

References fatalExit.

◆ vibratingMotion() [3/4]

FUNCTION_H vibratingMotion ( const vibratingMotion & )

default

Copy constructor.

◆ vibratingMotion() [4/4]

vibratingMotion ( vibratingMotion && )

delete

No move.

◆ ~vibratingMotion()

FUNCTION_H ~vibratingMotion ( )

default

Destructor.

Member Function Documentation

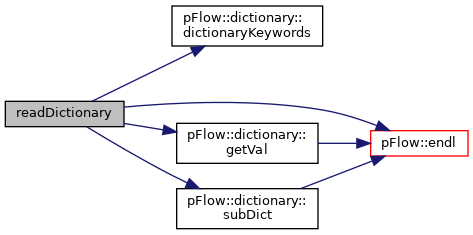

◆ readDictionary()

bool readDictionary ( const dictionary & dict )

protected

Read from a dictionary.

Definition at line 27 of file vibratingMotion.cpp.

References dictionary::dictionaryKeywords(), pFlow::endl(), fatalErrorInFunction, dictionary::getVal(), and dictionary::subDict().

Here is the call graph for this function:

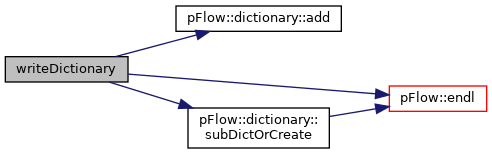

◆ writeDictionary()

bool writeDictionary ( dictionary & dict ) const

protected

Write to a dictionary.

Definition at line 88 of file vibratingMotion.cpp.

References dictionary::add(), pFlow::endl(), fatalErrorInFunction, ForAll, and dictionary::subDictOrCreate().

Here is the call graph for this function:

◆ TypeInfoNV()

TypeInfoNV ( "vibratingMotion" )

Type info.

◆ operator=() [1/2]

FUNCTION_H vibratingMotion& operator= ( const vibratingMotion & )

default

Copy assignment.

◆ operator=() [2/2]

vibratingMotion& operator= ( vibratingMotion && )

delete

No Move assignment.

◆ getModel()

Model getModel ( real t )

inline

Return motion model at time t.

Definition at line 173 of file vibratingMotion.hpp.

References vibratingMotion::components_, VectorDual< T, MemorySpace >::deviceVectorAll(), VectorDual< T, MemorySpace >::modifyOnHost(), vibratingMotion::numComponents_, and VectorDual< T, MemorySpace >::syncViews().

Here is the call graph for this function:

◆ nameToIndex()

INLINE_FUNCTION_H int32 nameToIndex ( const word & name ) const

inline

Name to component index.

Definition at line 187 of file vibratingMotion.hpp.

References vibratingMotion::componentName_, fatalErrorInFunction, fatalExit, and List< T >::findi().

Here is the call graph for this function:

◆ indexToName()

INLINE_FUNCTION_H word indexToName ( label i ) const

inline

Index to name.

Definition at line 205 of file vibratingMotion.hpp.

References vibratingMotion::componentName_, pFlow::endl(), fatalErrorInFunction, fatalExit, and vibratingMotion::numComponents_.

Here is the call graph for this function:

◆ pointVelocity()

INLINE_FUNCTION_H realx3 pointVelocity	(	label	n,
		const realx3 &	p
	)		const

inline

velocity at point p according to motion component n

Definition at line 221 of file vibratingMotion.hpp.

References vibratingMotion::components_, VectorDual< T, MemorySpace >::hostVectorAll(), and n.

Here is the call graph for this function:

◆ transferPoint()

INLINE_FUNCTION_H realx3 transferPoint	(	label	n,
		const realx3	p,
		real	dt
	)		const

inline

Transfer point p for dt seconds based on motion component n.

Definition at line 228 of file vibratingMotion.hpp.

References vibratingMotion::components_, VectorDual< T, MemorySpace >::hostVectorAll(), and n.

Here is the call graph for this function:

◆ isMoving()

INLINE_FUNCTION_HD bool isMoving ( ) const

inline

Is moving.

Definition at line 235 of file vibratingMotion.hpp.

◆ move()

INLINE_FUNCTION_H bool move	(	real	t,
		real	dt
	)

inline

Move ponits at time t for dt seconds.

Definition at line 242 of file vibratingMotion.hpp.

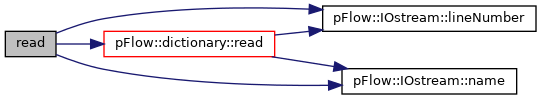

◆ read()

bool read ( iIstream & is )

Read from input stream is.

Definition at line 127 of file vibratingMotion.cpp.

References ioErrorInFile, IOstream::lineNumber(), pFlow::motionModelFile__, IOstream::name(), and dictionary::read().

Here is the call graph for this function:

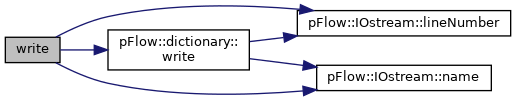

◆ write()

bool write ( iOstream & os ) const

Write to output stream os.

Definition at line 148 of file vibratingMotion.cpp.

References ioErrorInFile, IOstream::lineNumber(), pFlow::motionModelFile__, IOstream::name(), and dictionary::write().

Here is the call graph for this function:

Member Data Documentation

◆ components_

axisVector_HD components_

protected

Vibrating motion components.

Definition at line 127 of file vibratingMotion.hpp.

Referenced by vibratingMotion::getModel(), vibratingMotion::pointVelocity(), and vibratingMotion::transferPoint().

◆ componentName_

wordList componentName_

protected

Names of components.

Definition at line 130 of file vibratingMotion.hpp.

Referenced by vibratingMotion::indexToName(), and vibratingMotion::nameToIndex().

◆ numComponents_

label numComponents_ = 0

protected

Number of components.

Definition at line 133 of file vibratingMotion.hpp.

Referenced by vibratingMotion::getModel(), and vibratingMotion::indexToName().

The documentation for this class was generated from the following files:

src/MotionModel/vibratingMotion/vibratingMotion.hpp
src/MotionModel/vibratingMotion/vibratingMotion.cpp
