mapperNBS< executionSpace > Class Template Reference

Inheritance diagram for mapperNBS< executionSpace >:

Collaboration diagram for mapperNBS< executionSpace >:

Classes
class	cellIterator

Public Types
using	IdType = int32
using	IndexType = int32
using	Cells = cells< IndexType >
using	CellType = typename Cells::CellType
using	execution_space = executionSpace
using	memory_space = typename execution_space::memory_space
using	HeadType = ViewType3D< int32, memory_space >
using	NextType = ViewType1D< int32, memory_space >
Public Types inherited from cells< int32 >
using	CellType = triple< int32 >

Public Member Functions
	TypeInfoNV ("mapperNBS")
INLINE_FUNCTION_HD	mapperNBS ()
	mapperNBS (const box &domain, real cellSize, const ViewType1D< realx3, memory_space > &position, bool nextOwner=true)
	mapperNBS (const box &domain, int32 nx, int32 ny, int32 nz, const ViewType1D< realx3, memory_space > &position, bool nextOwner=true)
INLINE_FUNCTION_HD	mapperNBS (const mapperNBS &)=default
INLINE_FUNCTION_HD mapperNBS &	operator= (const mapperNBS &)=default
INLINE_FUNCTION_HD	~mapperNBS ()=default
INLINE_FUNCTION_HD auto	capacity () const
cellIterator	getCellIterator () const
bool	particlesCapcityChanged (int32 newCap)
INLINE_FUNCTION_HD auto &	head ()
INLINE_FUNCTION_HD auto &	next ()
const INLINE_FUNCTION_HD auto &	head () const
const INLINE_FUNCTION_HD auto &	next () const
INLINE_FUNCTION_HD auto &	pointPosition ()
INLINE_FUNCTION_H void	setNext (ViewType1D< int32, memory_space > &next)
INLINE_FUNCTION_H void	build (range activeRange)
template<typename IncludeFunction >
INLINE_FUNCTION_H void	build (range activeRange, IncludeFunction incld)
INLINE_FUNCTION_H void	buildCheckInDomain (range activeRange)
template<typename IncludeFunction >
INLINE_FUNCTION_H void	buildCheckInDomain (range activeRange, IncludeFunction incld)
Public Member Functions inherited from cells< int32 >
INLINE_FUNCTION_HD	cells ()
INLINE_FUNCTION_H	cells (const box &domain, real cellSize)
INLINE_FUNCTION_H	cells (const box &domain, int32 nx, int32 ny, int32 nz)
INLINE_FUNCTION_HD	cells (const cells &)=default
INLINE_FUNCTION_HD	cells (cells &&)=default
INLINE_FUNCTION_HD cells &	operator= (const cells &)=default
INLINE_FUNCTION_HD cells &	operator= (cells &&)=default
cells	getCells () const
INLINE_FUNCTION_H void	setCellSize (real cellSize)
INLINE_FUNCTION_H void	setCellSize (realx3 cellSize)
INLINE_FUNCTION_HD realx3	cellSize () const
const INLINE_FUNCTION_HD CellType &	numCells () const
INLINE_FUNCTION_HD int32	nx () const
INLINE_FUNCTION_HD int32	ny () const
INLINE_FUNCTION_HD int32	nz () const
INLINE_FUNCTION_HD int64	totalCells () const
const auto &	domain () const
INLINE_FUNCTION_HD CellType	pointIndex (const realx3 &p) const
INLINE_FUNCTION_HD bool	pointIndexInDomain (const realx3 p, CellType &index) const
INLINE_FUNCTION_HD bool	inDomain (const realx3 &p) const
INLINE_FUNCTION_HD bool	isInRange (const CellType &cell) const
INLINE_FUNCTION_HD bool	isInRange (int32 i, int32 j, int32 k) const
INLINE_FUNCTION_HD void	extendBox (const CellType &p1, const CellType &p2, const CellType &p3, int32 extent, CellType &minP, CellType &maxP) const
INLINE_FUNCTION_HD void	extendBox (const realx3 &p1, const realx3 &p2, const realx3 &p3, real extent, realx3 &minP, realx3 &maxP) const
INLINE_FUNCTION_HD CellType	bound (CellType p) const
INLINE_FUNCTION_HD realx3	bound (realx3 p) const

Protected Types
using	rangePolicyType = Kokkos::RangePolicy< Kokkos::IndexType< int32 >, Kokkos::Schedule< Kokkos::Static >, execution_space >

Protected Member Functions
INLINE_FUNCTION_H void	nullifyHead ()
void	nullifyNext (range nextRng)
void	nullify ()
void	nullify (range nextRng)
void	checkAllocateNext (int newCap)
void	allocateHead ()
Protected Member Functions inherited from cells< int32 >
INLINE_FUNCTION_H void	calculate ()

Protected Attributes
int32	capacity_ = 1
ViewType3D< int32, memory_space >	head_
ViewType1D< int32, memory_space >	next_
bool	nextOwner_ = true
ViewType1D< realx3, memory_space >	pointPosition_
Protected Attributes inherited from cells< int32 >
box	domain_
realx3	cellSize_
CellType	numCells_

Detailed Description

template<typename executionSpace>
class pFlow::mapperNBS< executionSpace >

Definition at line 34 of file mapperNBS.hpp.

Member Typedef Documentation

IdType

using IdType = int32

Definition at line 40 of file mapperNBS.hpp.

IndexType

using IndexType = int32

Definition at line 42 of file mapperNBS.hpp.

Cells

using Cells = cells<IndexType>

Definition at line 44 of file mapperNBS.hpp.

CellType

using CellType = typename Cells::CellType

Definition at line 46 of file mapperNBS.hpp.

execution_space

using execution_space = executionSpace

Definition at line 48 of file mapperNBS.hpp.

memory_space

using memory_space = typename execution_space::memory_space

Definition at line 50 of file mapperNBS.hpp.

HeadType

using HeadType = ViewType3D<int32, memory_space>

Definition at line 52 of file mapperNBS.hpp.

NextType

using NextType = ViewType1D<int32, memory_space>

Definition at line 54 of file mapperNBS.hpp.

rangePolicyType

using rangePolicyType = Kokkos::RangePolicy< Kokkos::IndexType<int32>, Kokkos::Schedule<Kokkos::Static>, execution_space>

protected

Definition at line 102 of file mapperNBS.hpp.

Constructor & Destructor Documentation

mapperNBS() [1/4]

INLINE_FUNCTION_HD mapperNBS ( )

inline

Definition at line 163 of file mapperNBS.hpp.

mapperNBS() [2/4]

mapperNBS ( const box &  domain, real  cellSize, const ViewType1D< realx3, memory_space > &  position, bool  nextOwner = true  )

inline

Definition at line 165 of file mapperNBS.hpp.

mapperNBS() [3/4]

mapperNBS ( const box &  domain, int32  nx, int32  ny, int32  nz, const ViewType1D< realx3, memory_space > &  position, bool  nextOwner = true  )

inline

Definition at line 185 of file mapperNBS.hpp.

mapperNBS() [4/4]

INLINE_FUNCTION_HD mapperNBS ( const mapperNBS< executionSpace > &  )

default

~mapperNBS()

INLINE_FUNCTION_HD ~mapperNBS ( )

default

Member Function Documentation

nullifyHead()

INLINE_FUNCTION_H void nullifyHead ( )

inlineprotected

Definition at line 105 of file mapperNBS.hpp.

Referenced by mapperNBS< DefaultHostExecutionSpace >::nullify().

Here is the caller graph for this function:

nullifyNext()

void nullifyNext ( range  nextRng )

inlineprotected

Definition at line 116 of file mapperNBS.hpp.

Referenced by mapperNBS< DefaultHostExecutionSpace >::nullify().

Here is the caller graph for this function:

nullify() [1/2]

void nullify ( )

inlineprotected

Definition at line 126 of file mapperNBS.hpp.

Referenced by mapperNBS< DefaultHostExecutionSpace >::build(), and mapperNBS< DefaultHostExecutionSpace >::buildCheckInDomain().

Here is the caller graph for this function:

nullify() [2/2]

void nullify ( range  nextRng )

inlineprotected

Definition at line 133 of file mapperNBS.hpp.

checkAllocateNext()

void checkAllocateNext ( int  newCap )

inlineprotected

Definition at line 141 of file mapperNBS.hpp.

Referenced by mapperNBS< DefaultHostExecutionSpace >::build(), mapperNBS< DefaultHostExecutionSpace >::buildCheckInDomain(), mapperNBS< DefaultHostExecutionSpace >::mapperNBS(), NBS< executionSpace >::objectSizeChanged(), and mapperNBS< DefaultHostExecutionSpace >::particlesCapcityChanged().

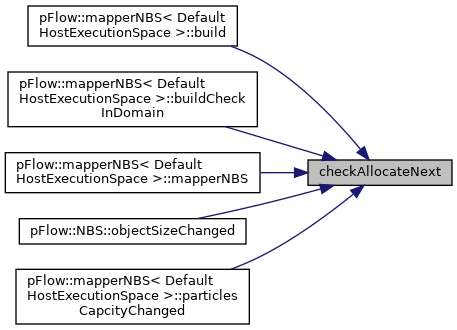

Here is the caller graph for this function:

allocateHead()

void allocateHead ( )

inlineprotected

Definition at line 151 of file mapperNBS.hpp.

TypeInfoNV()

TypeInfoNV

(

"mapperNBS< executionSpace >"

)

operator=()

INLINE_FUNCTION_HD mapperNBS& operator= ( const mapperNBS< executionSpace > &  )

default

capacity()

INLINE_FUNCTION_HD auto capacity ( ) const

inline

Definition at line 214 of file mapperNBS.hpp.

getCellIterator()

cellIterator getCellIterator ( ) const

inline

Definition at line 219 of file mapperNBS.hpp.

Referenced by pointRectCell::getCellIterator(), NBS< executionSpace >::getCellIterator(), NBS< executionSpace >::getCellIteratorLevels(), and pointRectCell::mapPOints().

Here is the caller graph for this function:

particlesCapcityChanged()

bool particlesCapcityChanged ( int32  newCap )

inline

Definition at line 224 of file mapperNBS.hpp.

head() [1/2]

INLINE_FUNCTION_HD auto& head ( )

inline

Definition at line 231 of file mapperNBS.hpp.

Referenced by mapperNBS< DefaultHostExecutionSpace >::build(), and mapperNBS< DefaultHostExecutionSpace >::buildCheckInDomain().

Here is the caller graph for this function:

next() [1/2]

INLINE_FUNCTION_HD auto& next ( )

inline

Definition at line 237 of file mapperNBS.hpp.

Referenced by mapperNBS< DefaultHostExecutionSpace >::build(), mapperNBS< DefaultHostExecutionSpace >::buildCheckInDomain(), and mapperNBS< DefaultHostExecutionSpace >::setNext().

Here is the caller graph for this function:

head() [2/2]

const INLINE_FUNCTION_HD auto& head ( ) const

inline

Definition at line 243 of file mapperNBS.hpp.

next() [2/2]

const INLINE_FUNCTION_HD auto& next ( ) const

inline

Definition at line 249 of file mapperNBS.hpp.

pointPosition()

INLINE_FUNCTION_HD auto& pointPosition ( )

inline

Definition at line 255 of file mapperNBS.hpp.

setNext()

INLINE_FUNCTION_H void setNext ( ViewType1D< int32, memory_space > &  next )

inline

Definition at line 261 of file mapperNBS.hpp.

build() [1/2]

INLINE_FUNCTION_H void build ( range  activeRange )

inline

Definition at line 274 of file mapperNBS.hpp.

Referenced by NBSLevel0< executionSpace >::broadSearch(), and NBS< executionSpace >::broadSearch().

Here is the caller graph for this function:

build() [2/2]

INLINE_FUNCTION_H void build ( range  activeRange, IncludeFunction  incld  )

inline

Definition at line 300 of file mapperNBS.hpp.

buildCheckInDomain() [1/2]

INLINE_FUNCTION_H void buildCheckInDomain ( range  activeRange )

inline

Definition at line 329 of file mapperNBS.hpp.

Referenced by pointRectCell::mapPOints().

Here is the caller graph for this function:

buildCheckInDomain() [2/2]

INLINE_FUNCTION_H void buildCheckInDomain ( range  activeRange, IncludeFunction  incld  )

inline

Definition at line 359 of file mapperNBS.hpp.

Member Data Documentation

capacity_

int32 capacity_ = 1

protected

Definition at line 87 of file mapperNBS.hpp.

Referenced by mapperNBS< DefaultHostExecutionSpace >::capacity(), mapperNBS< DefaultHostExecutionSpace >::checkAllocateNext(), mapperNBS< DefaultHostExecutionSpace >::nullify(), and mapperNBS< DefaultHostExecutionSpace >::setNext().

head_

ViewType3D<int32, memory_space> head_

protected

Definition at line 89 of file mapperNBS.hpp.

Referenced by mapperNBS< DefaultHostExecutionSpace >::allocateHead(), mapperNBS< DefaultHostExecutionSpace >::build(), mapperNBS< DefaultHostExecutionSpace >::buildCheckInDomain(), mapperNBS< DefaultHostExecutionSpace >::getCellIterator(), mapperNBS< DefaultHostExecutionSpace >::head(), and mapperNBS< DefaultHostExecutionSpace >::nullifyHead().

next_

ViewType1D<int32, memory_space> next_

protected

Definition at line 91 of file mapperNBS.hpp.

Referenced by mapperNBS< DefaultHostExecutionSpace >::build(), mapperNBS< DefaultHostExecutionSpace >::buildCheckInDomain(), mapperNBS< DefaultHostExecutionSpace >::checkAllocateNext(), mapperNBS< DefaultHostExecutionSpace >::getCellIterator(), mapperNBS< DefaultHostExecutionSpace >::next(), mapperNBS< DefaultHostExecutionSpace >::nullifyNext(), and mapperNBS< DefaultHostExecutionSpace >::setNext().

nextOwner_

bool nextOwner_ = true

protected

Definition at line 93 of file mapperNBS.hpp.

Referenced by mapperNBS< DefaultHostExecutionSpace >::checkAllocateNext(), mapperNBS< DefaultHostExecutionSpace >::nullifyNext(), and mapperNBS< DefaultHostExecutionSpace >::setNext().

pointPosition_

ViewType1D<realx3, memory_space> pointPosition_

protected

Definition at line 96 of file mapperNBS.hpp.

Referenced by mapperNBS< DefaultHostExecutionSpace >::build(), mapperNBS< DefaultHostExecutionSpace >::buildCheckInDomain(), mapperNBS< DefaultHostExecutionSpace >::mapperNBS(), and mapperNBS< DefaultHostExecutionSpace >::pointPosition().

---

The documentation for this class was generated from the following file:

• src/Interaction/contactSearch/methods/mapperNBS.hpp
