property holds the pure properties of materials. More...

Inheritance diagram for property:

Collaboration diagram for property:

[legend]

Public Member Functions
	TypeInfoNV ("property")
	Type info. More...

	property ()
	Emptry constructor, used for reading from a file. More...

	property (const wordVector &materials, const realVector &densities)
	Constructe from materials and densities. More...

	property (const fileSystem &file)
	Construct from file. More...

	property (const dictionary &dict)
	Construct from dictionary dict. More...

	property (const property &)=default
	Default copy. More...

	property (property &&)=default
	Default move. More...

property &	operator= (const property &)=default
	Default copy assignment. More...

property &	operator= (property &&)=default
	Default move assignment. More...

	~property ()=default
	Default destructor. More...

const auto &	dict () const
	Return dictionary. More...

auto	numMaterials () const
	Return number of materials. More...

const auto &	materials () const
	Return list of material names. More...

const auto &	densities () const
	Return the list of densities. More...

const word &	material (uint32 i) const
	Return the material name of material i. More...

bool	material (uint32 i, word &name) const
	Get the name of material i. More...

real	density (uint32 i) const
	Return density of material i. More...

bool	density (uint32 i, real &rho) const
	Get the density of material i. More...

bool	nameToIndex (const word &name, uint32 &idx) const
	Get the name of material in index idx Return true, if the name found, otherwise false. More...

bool	read (const dictionary &dict)
	Read from dictionary. More...

bool	write (dictionary &dict) const
	Write to dictionary. More...

Protected Member Functions
bool	readDictionary (const dictionary &dict)
	read from dict More...

bool	writeDictionary (dictionary &dict) const
	write to dict More...

bool	makeNameIndex ()
	creates a mapp More...

Protected Attributes
uniquePtr< dictionary >	dict_ = nullptr
	pointer to the dictionary, if it is constructed from a file/dictionary More...

wordVector	materials_
	list of name of materials More...

realVector	densities_
	list of density of materials More...

wordHashMap< uint32 >	nameIndex_
	rapid mapping from name to index More...

uint32	numMaterials_ = 0
	number of materials More...

Detailed Description

property holds the pure properties of materials.

This class holds a list of all materials name and their densities that are used in the simulation: for walls and particles.

Definition at line 40 of file property.hpp.

Constructor & Destructor Documentation

◆ property() [1/6]

property ( )

inline

Emptry constructor, used for reading from a file.

Definition at line 82 of file property.hpp.

◆ property() [2/6]

property	(	const wordVector &	materials,
		const realVector &	densities
	)

Constructe from materials and densities.

Definition at line 97 of file property.cpp.

References fatalErrorInFunction, and fatalExit.

◆ property() [3/6]

property ( const fileSystem & file )

Construct from file.

Definition at line 114 of file property.cpp.

References fatalExit, ioErrorInFile, IOstream::lineNumber(), and Istream::name().

Here is the call graph for this function:

◆ property() [4/6]

property ( const dictionary & dict )

Construct from dictionary dict.

Definition at line 140 of file property.cpp.

References fatalExit.

◆ property() [5/6]

property ( const property & )

default

Default copy.

◆ property() [6/6]

property ( property && )

default

Default move.

◆ ~property()

~property ( )

default

Default destructor.

Member Function Documentation

◆ readDictionary()

bool readDictionary ( const dictionary & dict )

protected

read from dict

Definition at line 26 of file property.cpp.

References pFlow::endl(), fatalErrorInFunction, dictionary::getVal(), dictionary::globalName(), and Vector< T, Allocator >::size().

Referenced by property::read().

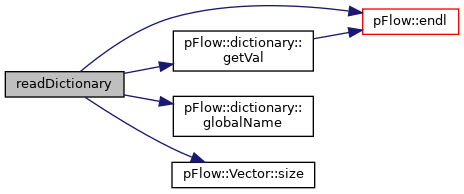

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeDictionary()

bool writeDictionary ( dictionary & dict ) const

protected

write to dict

Definition at line 54 of file property.cpp.

References dictionary::add(), pFlow::endl(), fatalErrorInFunction, and dictionary::globalName().

Referenced by property::write().

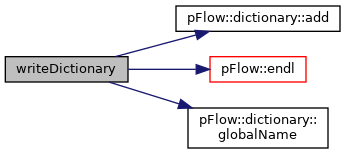

Here is the call graph for this function:

Here is the caller graph for this function:

◆ makeNameIndex()

bool makeNameIndex ( )

protected

creates a mapp

Definition at line 76 of file property.cpp.

References fatalErrorInFunction, property::materials_, property::nameIndex_, property::numMaterials_, and Vector< T, Allocator >::size().

Here is the call graph for this function:

◆ TypeInfoNV()

TypeInfoNV ( "property" )

Type info.

◆ operator=() [1/2]

property& operator= ( const property & )

default

Default copy assignment.

◆ operator=() [2/2]

property& operator= ( property && )

default

Default move assignment.

◆ dict()

const auto& dict ( ) const

inline

Return dictionary.

Definition at line 112 of file property.hpp.

References property::dict_.

Referenced by property::read(), and property::write().

Here is the caller graph for this function:

◆ numMaterials()

auto numMaterials ( ) const

inline

Return number of materials.

Definition at line 118 of file property.hpp.

References property::numMaterials_.

◆ materials()

const auto& materials ( ) const

inline

Return list of material names.

Definition at line 124 of file property.hpp.

References property::materials_.

◆ densities()

const auto& densities ( ) const

inline

Return the list of densities.

Definition at line 129 of file property.hpp.

References property::densities_.

◆ material() [1/2]

const word& material ( uint32 i ) const

inline

Return the material name of material i.

Definition at line 134 of file property.hpp.

References property::materials_.

Referenced by property::material().

Here is the caller graph for this function:

◆ material() [2/2]

bool material	(	uint32	i,
		word &	name
	)		const

inline

Get the name of material i.

Return true, if i is in the range and otherwise false

Definition at line 141 of file property.hpp.

References property::material(), and property::numMaterials_.

Here is the call graph for this function:

◆ density() [1/2]

real density ( uint32 i ) const

inline

Return density of material i.

Definition at line 156 of file property.hpp.

References property::densities_.

Referenced by property::density().

Here is the caller graph for this function:

◆ density() [2/2]

bool density	(	uint32	i,
		real &	rho
	)		const

inline

Get the density of material i.

Return true, if i is in the range and otherwise false

Definition at line 163 of file property.hpp.

References property::density(), and property::numMaterials_.

Here is the call graph for this function:

◆ nameToIndex()

bool nameToIndex	(	const word &	name,
		uint32 &	idx
	)		const

inline

Get the name of material in index idx Return true, if the name found, otherwise false.

Definition at line 179 of file property.hpp.

References property::nameIndex_.

Referenced by geometry::findPropertyId().

Here is the caller graph for this function:

◆ read()

bool read ( const dictionary & dict )

inline

Read from dictionary.

Definition at line 196 of file property.hpp.

References property::dict(), and property::readDictionary().

Here is the call graph for this function:

◆ write()

bool write ( dictionary & dict ) const

inline

Write to dictionary.

Definition at line 202 of file property.hpp.

References property::dict(), and property::writeDictionary().

Here is the call graph for this function:

Member Data Documentation

◆ dict_

uniquePtr<dictionary> dict_ = nullptr

protected

pointer to the dictionary, if it is constructed from a file/dictionary

Definition at line 47 of file property.hpp.

Referenced by property::dict().

◆ materials_

wordVector materials_

protected

list of name of materials

Definition at line 50 of file property.hpp.

Referenced by property::makeNameIndex(), property::material(), and property::materials().

◆ densities_

realVector densities_

protected

list of density of materials

Definition at line 53 of file property.hpp.

Referenced by property::densities(), and property::density().

◆ nameIndex_

wordHashMap<uint32> nameIndex_

protected

rapid mapping from name to index

Definition at line 56 of file property.hpp.

Referenced by property::makeNameIndex(), and property::nameToIndex().

◆ numMaterials_

uint32 numMaterials_ = 0

protected

number of materials

Definition at line 59 of file property.hpp.

Referenced by property::density(), property::makeNameIndex(), property::material(), and property::numMaterials().

The documentation for this class was generated from the following files:

src/Property/property.hpp
src/Property/property.cpp
