normalRolling< contactForceModel > Class Template Reference

Inheritance diagram for normalRolling< contactForceModel >:

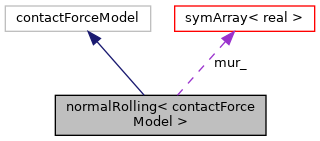

Collaboration diagram for normalRolling< contactForceModel >:

Public Types
using	contactForceStorage = typename contactForceModel::contactForceStorage

Public Member Functions
bool	readNormalDict (const dictionary &dict)
	TypeInfoNV (word("normal<"+contactForceModel::TYPENAME()+">"))
	normalRolling (int32 nMaterial, const ViewType1D< real > &rho, const dictionary &dict)
INLINE_FUNCTION_HD void	rollingFriction (const real dt, const int32 i, const int32 j, const int32 propId_i, const int32 propId_j, const real Ri, const real Rj, const realx3 &wi, const realx3 &wj, const realx3 &Nij, const realx3 &FCn, realx3 &Mri, realx3 &Mrj) const

Public Attributes
realSymArray_D	mur_

Detailed Description

template<typename contactForceModel>
class pFlow::cfModels::normalRolling< contactForceModel >

Definition at line 29 of file normalRolling.hpp.

Member Typedef Documentation

contactForceStorage

using contactForceStorage = typename contactForceModel::contactForceStorage

Definition at line 36 of file normalRolling.hpp.

Constructor & Destructor Documentation

normalRolling()

normalRolling ( int32  nMaterial, const ViewType1D< real > &  rho, const dictionary &  dict  )

inline

Definition at line 64 of file normalRolling.hpp.

References fatalExit, and normalRolling< contactForceModel >::readNormalDict().

Here is the call graph for this function:

Member Function Documentation

readNormalDict()

bool readNormalDict ( const dictionary &  dict )

inline

Definition at line 41 of file normalRolling.hpp.

References symArray< T, MemorySpace >::assign(), fatalErrorInFunction, symArray< real >::getN(), dictionary::getVal(), and normalRolling< contactForceModel >::mur_.

Referenced by normalRolling< contactForceModel >::normalRolling().

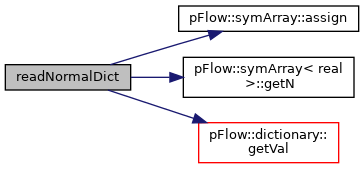

Here is the call graph for this function:

Here is the caller graph for this function:

TypeInfoNV()

TypeInfoNV

(

word("normal<"+contactForceModel::TYPENAME()+">")

)

rollingFriction()

INLINE_FUNCTION_HD void rollingFriction ( const real  dt, const int32  i, const int32  j, const int32  propId_i, const int32  propId_j, const real  Ri, const real  Rj, const realx3 &  wi, const realx3 &  wj, const realx3 &  Nij, const realx3 &  FCn, realx3 &  Mri, realx3 &  Mrj  ) const

inline

Definition at line 77 of file normalRolling.hpp.

References pFlow::equal(), length(), and normalRolling< contactForceModel >::mur_.

Here is the call graph for this function:

Member Data Documentation

mur_

realSymArray_D mur_

Definition at line 39 of file normalRolling.hpp.

Referenced by normalRolling< contactForceModel >::readNormalDict(), and normalRolling< contactForceModel >::rollingFriction().

---

The documentation for this class was generated from the following file:

• src/Interaction/Models/rolling/normalRolling.hpp
